LED 360° pipe SAFETY IP66 24-42V
With LED 360° PIPE SAFETY products, you can securely light up humid and confined spaces and spaces with conductive walls. Safety lamps require a safety extra low voltage network or transformer to function.

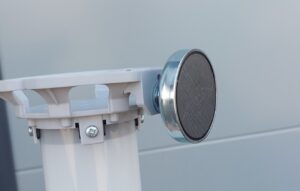

Megalight LED 360° PIPE SAFETY models can be fixed either permanently on the site or temporarily using two 300 N magnet holders. The new end caps offer a variety of different mounting options.
The Pipe structure is rated as IP 66, excluding the optional extension socket. Different extension socket alternatives are available, please ask for more details.
The 16 A socket can be used as outlet for electrical devices or for chaining several lamps into a complete lighting system.
The PC-tube is protected by a replaceable dust and painting protector, in order to keep the optical parts of the lamp clean.
The video demonstrates the Megalight LED 360° Pipe’s IP67 certification by submerging it for 30 minutes, proving its durability and continued functionality even after the test.
LED 360° PIPE SAFETY models can be equipped with the following alternative sockets:
A) CEE309 24VAC
A) CEE309 42VAC
B) SELV 24 or 42VAC
Technical details:
LED 360° STANDARD SAFETY 24 V:
| POWER VERSION | VAC or VDC | LUMEN | CCT (K) | L (mm) | Ø (mm) | Cable | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 14W | 24 V | 1800 lm | 5000 | 430 | 60/110 | 10m H07RN-F | 2 |
| 24W | 24 V | 1800 lm | 5000 | 430 | 60/110 | 10m H07RN-F | 2,2 |
LED 360° STANDARD SAFETY 42 V:
| POWER VERSION | VAC or VDC | LUMEN | CCT (K) | L (mm) | Ø (mm) | Cable | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 14W | 42 V | 3600 lm | 5000 | 650 | 60/110 | 10m H07RN-F | 2 |
| 24W | 42 V | 3600 lm | 5000 | 650 | 60/110 | 10m H07RN-F | 2,2 |
